Stackers堆高车
Lift, lower and stacking circuits.举升、下降及堆垛回路。

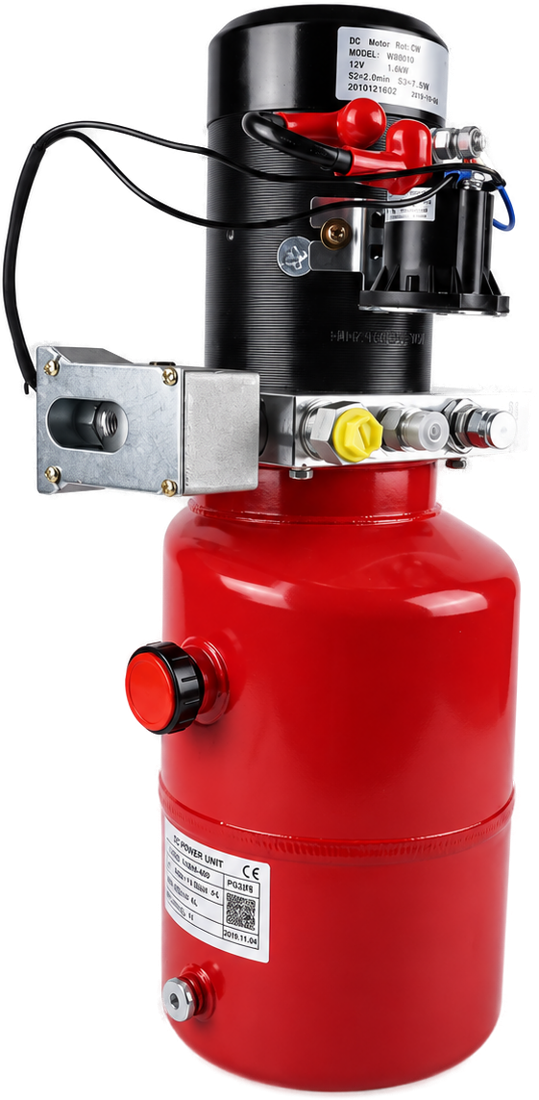

Representative configuration. Final arrangement, nameplate and specifications are confirmed per project.代表配置示意。最终结构、铭牌及参数按具体项目确认。
DC APPLICATIONS直流应用
Compact HPU for Material Handling物料搬运用紧凑型 HPU
DC power units configured for stackers, electric forklifts and specialised handling equipment.为堆高车、电动叉车及特殊搬运设备按工况配置的直流液压动力单元。
Lift, lower, stack and adjust: match the hydraulic functions, electrical supply and intermittent duty to your handling equipment.围绕举升、下降、堆垛及货叉调距，将液压功能、电源与断续工作制匹配到搬运设备。
Typical supply voltage重点应用电源12 / 24 / 48 V DC
Motor power range电机功率范围0.8–3.0 kW DC
Electric Forklifts电动叉车
Lift, lower and fork adjustment.举升、下降及货叉调距。
Special Handling Equipment特殊搬运设备
Pallet trucks and custom handling machines.托盘搬运车及定制搬运设备。
Application illustrations describe equipment categories. Equipment compatibility requires project-specific review.应用示意用于说明设备类别，具体适配性需按项目评估。
| Motor voltage电机电压 | DC 12 / 24 / 48 V. AC options: 110–400 V, single- or three-phase, 50 / 60 Hz.直流 12 / 24 / 48 V；交流选项为 110–400 V，单相或三相，50 / 60 Hz。 |
|---|---|
| Motor power电机功率 | DC 0.8–3.0 kW · AC 0.75–2.2 kW直流 0.8–3.0 kW · 交流 0.75–2.2 kW |
| Pump displacement泵排量 | Gear pump: 0.16–5.8 cc/rev齿轮泵：0.16–5.8 cc/rev |
| Working pressure工作压力 | Up to 250 bar; typical range 100–200 bar最高 250 bar；常用范围 100–200 bar |
| Tank volume油箱容积 | 1.7–30 L · Steel or plastic1.7–30 L · 钢制或塑料 |
| Circuit options液压回路选项 | Lift, hold and lower; solenoid or manual release; pressure-compensated lowering; relief and directional valves.举升、保压、下降；电磁或手动泄压；压力补偿下降调速；溢流阀及换向阀。 |
| Duty cycle工作制 | DC: S3 intermittent · AC: S1 continuous, subject to the selected motor and application.直流：S3 断续工作制；交流：S1 连续工作制，具体按电机及应用确认。 |
| Installation安装方式 | Horizontal or vertical. Flange, bracket and envelope are matched to the available space.卧式或立式安装，法兰、支架及外形尺寸按可用空间匹配。 |
These ranges describe available configuration options, not one universal model. Ratings are not automatically available in every combination. We confirm pressure, flow, duty cycle, electrical supply and installation together before sampling.以上范围用于说明可供配置选项，并非某一通用型号的额定参数，也不表示任意参数均可组合。打样前需共同确认压力、流量、工作制、电源与安装条件。
What you can provide您可以提供
- Equipment or installation drawing设备图纸或安装图
- Current unit specification or hydraulic function list现有动力单元参数或液压功能清单
- Pressure, flow, voltage and duty cycle压力、流量、电压与工作制
- Mounting space, order quantity and target delivery安装空间、订单数量及目标交期
What we coordinate我们协调的内容
- Motor, pump, valves, circuit and tank selection电机、泵、阀、回路与油箱选配
- Installation drawing and sample preparation安装图与样品准备
- Logo, colour, nameplate and packaging requirementsLogo、颜色、铭牌与包装要求
- Agreed testing and customer sample approval约定测试项目与客户样品批准
Quality coordination质量协调Testing defined
Testing defined
for your project.根据项目约定
测试与验收。
We coordinate test scope and acceptance criteria with you and the production partner.我们与您及生产合作方共同协调测试范围与验收标准。
Pressure & leakage压力与泄漏
Flow performance流量表现
Motor & electrical电机及电气
Noise噪声
Temperature rise & duty cycle温升与工作制
Circuit functions液压回路功能
Tell us what your equipment needs.告诉我们您的设备需求。
A drawing, current unit or a few key parameters is a good place to start.从图纸、现有动力单元，或几个关键参数开始沟通。
