Product Craft

Product Description

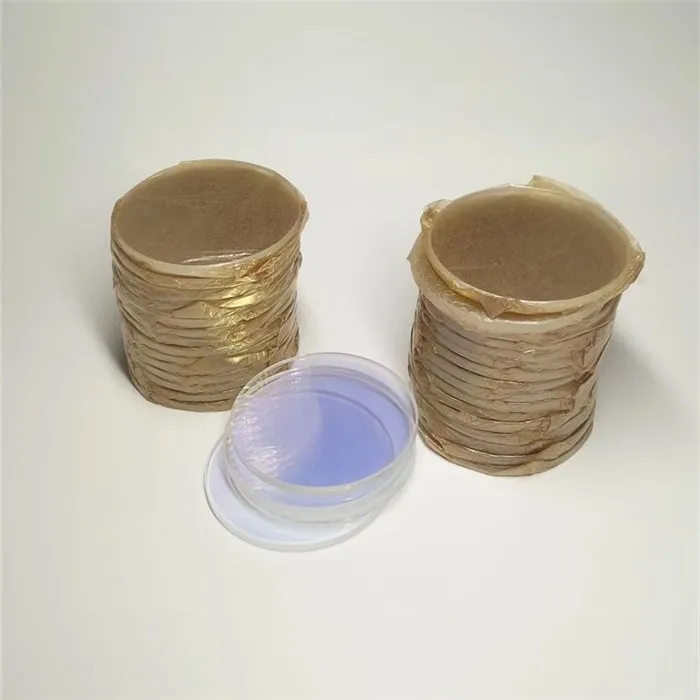

High precision optical anti-reflection coatings laser protection window fiber laser protective windows

Protective windows for disc,

ND: YAG-And Fiber-Lasers

Used as last optics to be placed before the working area to protect the high-class optics from material spillings during the laser welding and cutting process.

DIA55*1.5mmT specification:

1. Shape: round, square, octagon
2. Material：imported Synthesic Quartz
3.Diameter tolerance: 55 +/- 0.05mm
4.Thickness tolerance: 1.5 +/- 0.05mm

5. Optical plane difference: 10''-1’

6. Surface Accuracy: <λ/10

Plastic Injection Molding Companies

7. Coating (double-sided): 650, 1030-1070nm

8. Transmittance: T>99.90%
9. Lens density: 2.21g/cm3

10. Knoop hardness HK100: 610KG/mm2

11. Thermal conductivity: 1.1W/m.°C

12. Specific heat: 879J/KG.°C

13. Thermal expansion coefficient: 7.1×10E-^6/K

14. Hydrolytic: Level 2

Plastic Injection Molding Companies

15. Acid resistance: Level 1

16. Alkali resistance: Level 2

17. Refractive index:1.5168

18. Abbe number: 63.96

19. Resistivity: 7×10^7Ω.cm

20. Dielectric strength: 250~400Kv/cm

More Products

Production Craft

Optical Anti-Reflection coatings

Anti-relective coating enhances performance!

Each beam of light generates a back reflection during the transition from one into another medium. Anti-reflective coatings

are used to minimize effects like loss of power and the apperance of dangerous hot spots caused by the back reflection.

Anti-reflective coatings (short AR-coating) are used in a variety in optivs as they reduce the reflection of glass surfaces. The

increased light transmission and a reduction of aberrations are the main advantages.

Standard Specification for laser protection windows

- Standard substrate: Synthetic quartz (for lasers with higher output power)

- Standard tolerances: Φ±0.1mm

- Thickness: ±0.05mm or ±0.1mm

- Edges grinded with facette (f.e. 0.3mmx45°)

- Both sides machanically polished λ4-λ6

- Scratch/dig 60/40 (40/20)

- Standard Coating: @1064nm T≥99.0%, or broad band coating: for example @950-1100nm ≥99.6%

- Smudge-proof and scratch-resistant, adhesive peeling test, cleaning with alcohol mixture in a dust-free chamber, ultrasonic cleaning

We are also able to offer you laser discs without anti-reflective coating! Please feel free to contact us, if your needed

laser disc is not stated in the list and let us have your specification (diameter, coating and so on), so that we can arrange

an individual offer for you according to your actual needs.

Offer OEM services

We receive your customize requests, the colors, shapes, capacities and functions; meanwhile the M.O.Q. should be considered.

Packing type

Paper cartoon on wooden pallet; Or by customer's requirements to print logo and packing.

Offer EXW, FOB, CIF services to all countries.

Packaging
Size	120 (L) * 80 (W) * 100 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Capabilities

FAQ Questions:

1. Do you offer samples for free?
A: YES, Sample is for free, only the freight fee is paid by buyer. If our standard products aren't suitable for you, please tell us detailed request, we will produce it for you as soon as possible.

2. Can I customize my own designs?
A: Yes, we will produce your own parts by your drawings. But it should meet our MOQ.

3. How can I place order?
A: Inquiry- quotation- deposit payment- production-delivery-balance payment-Customs clearance & BL- Order completed.

4. What kind of payment method that you offer?
A: We prefer T/T, Westion Union, and others.

5. What kind of shipment options can I choose?
A: UPS, FEDEX, Sea, Air.

6. After-sale service?
A: We have branch office in Europe for clients. For other countries, please contact us if any problems.
